Carbide V Dimensional Drawings


The drawings are representative of the carbide v’s we make. Actual dimensions may vary slightly from drawings.

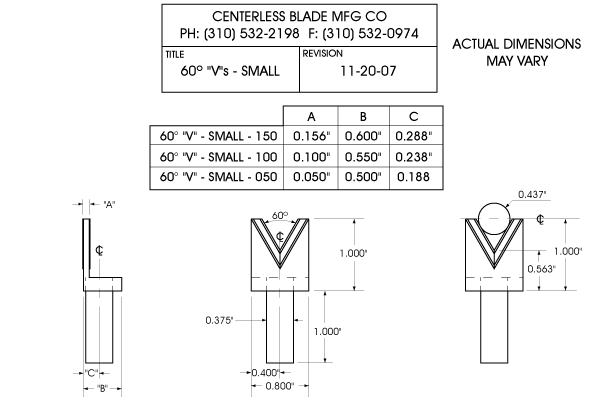

carbide v block size 60-v-sm-v2
carbide v block size 60-v-of-v2

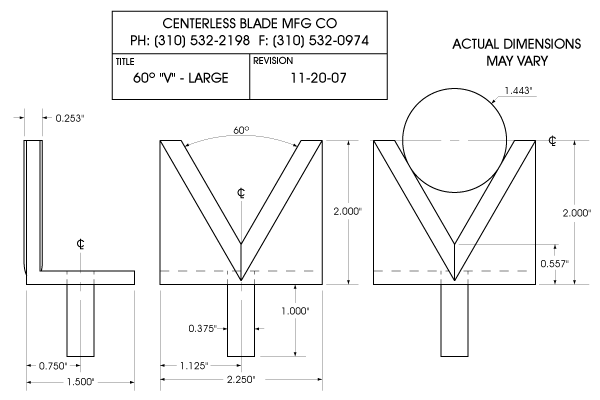

carbide v block size 60-v-lg-v2
carbide v block size 90-v-sm-v2
carbide v block size 90-v-md-v2

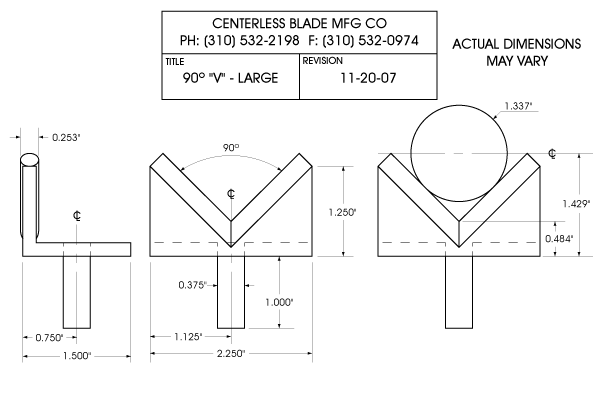

carbide v block size 90-v-lg-v2
